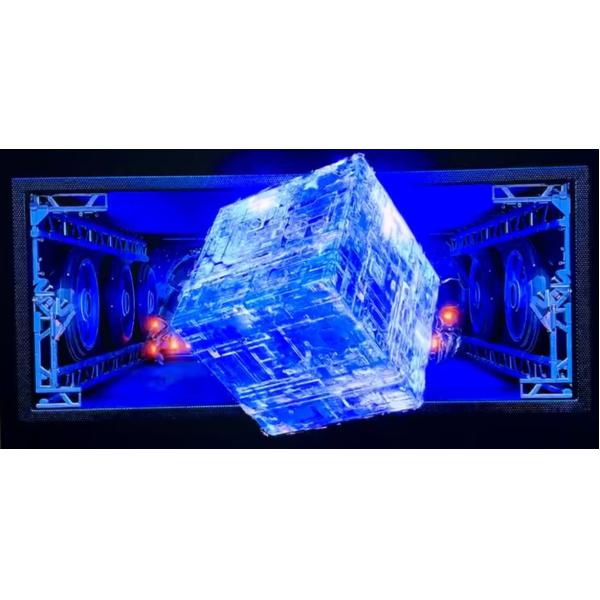

COB Indoor LED Video Wall Product Description
Our COB Small Pitch LED Video Wall combines Chip-on-Board packaging with micro-pitch technology to deliver cinematic visuals in indoor environments. The direct chip bonding reduces light loss, achieving 1200 nits brightness with 100,000:1 contrast—perfect for HDR content. The 0.9mm-2.5mm pitch options balance resolution with viewing distance, making it suitable for boardrooms, theaters, and digital signage.
Specifications of COB Indoor LED Video Wall
| Pixel Pitch | 0.78mm | 0. 93mm | 1. 25mm | 1. 56mm | 1.87mm |
| Module | 150*168. 75mm |
| Resolution (dot) | 192*216 | 160*180 | 120*135 | 96*108 | 80*90 |
| Surface Treatment | Matt COB |
| Panel Size | 600*675*39.5mm / 600*337. 5*39. 5mm |
| Panel Weight | 7. 9kg ( 600*675mm) / 4kg ( 600*337. 5mm) |
| Panel Resolution (dot) | 768*864/ 768*432 | 640*720/ 640*360 | 480*540/ 480*270 | 384*432/ 384*216 | 320*360/ 320*180 |
| Pixel Density(dot/㎡) | 1,638,400 | 1,137,777 | 640,000 | 409,600 | 284,444 |
| Circuit Design | Common cathode circuit |
| Flash Correction Storage | Applicable |
| Brightness of White Balance | Standard 600nits |
| Refresh Rate | 1920~3840Hz |
| Contrast Ratio | 10000: 1 (Condition without lighting) |
| Color Temperature | 9300K(Standard) |
| Viewing Angle | 160° |
| Input Voltage | AC 100~240V 50/60Hz |
|
Max. Power Consumption (White Balance 600nit) | 170W/Panel (600*675mm); 85W/Panel (600*337mm) | 150W/Panel (600*675mm); 75W/Panel (600*337mm) | 140W/Panel (600*675mm); 70W/Panel (600*337mm) | 140W/Panel (600*675mm); 70W/Panel (600*337mm) | 130W/Panel (600*675mm); 65W/Panel (600*337mm) |
| Maintenance Way | Front Service |
| IP level of PCB serface | IP54(Washable by clean water) |
| Operating Temperature | -10°C-+40°C/10%RH-90%RH |
| Stroage Temperature | -20°C-+60°C/10%RH-90%RII |
| Certificate | 3C, CE, CB, ETL, FCC, ROHS, CQC |
COB Indoor LED Video Wall Technical Breakthroughs
1. Thermal Management
A multilayer PCB with embedded heat sinks maintains <35°C operating temperature, preventing color degradation over 50,000 hours.
2.Environmental Resilience
The epoxy-encapsulated surface is anti-corrosive and resistant to cleaning agents, ideal for healthcare or hospitality settings.
3.Scalability
Standardized 500x500mm modules support seamless expansion to 100+ square meters, with built-in calibration software for uniform color across the array.
COB Indoor LED Video Wall Performance Advantages
- Low MOQ: 10 square meters for custom configurations.
- Dual Power & Signal Backup: Redundant systems for 99.99% uptime in critical applications.
- 3D Compatibility: Support for active shutter and polarized 3D content.
COB Indoor LED Video Wall Industry Applications
- Financial Trading Floors: Real-time data visualization with multi-window support.
- Museum Exhibitions: Interactive historical displays with touch-sensitive overlays.
- Live Broadcasting: Studio backdrops with chroma key capabilities.
