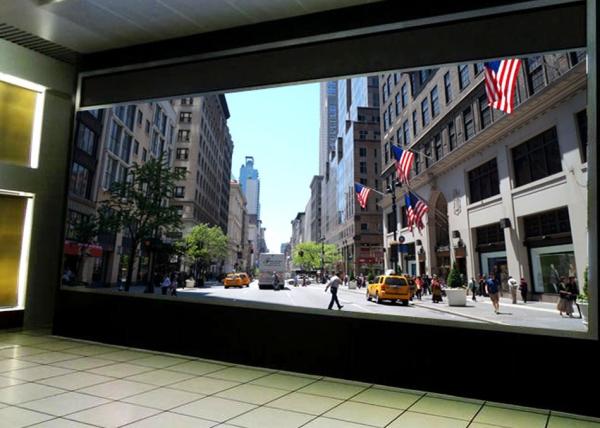

High Power Led Wall Screen Smd 2.5mm High Definition For Shopping Mall

Brand Name : TBC

Model Number : Ei2.5

Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC

Place of Origin : China

MOQ : 10sqm

Price : Negotiable

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 10,000sqm/month

Delivery Time : 15-25days

Packaging Details : Wooden box

Pixel : 2.5mm

Color : RGB full color

Maintenance : Magnetic Front Service

Leds : SMD 3in1

Cabinet Size : 640mmx640mm

Cabinet Pixel : 256x256

Contact Now

Indoor SMD LED Display P2.5 High Definition Front Service Video Wall

Quick Details:

1, Pixel Pitch: 2.5mm.

2, SMD LEDs, viewing angle: 160°/ 160°.

3, RGB full color: 281trillions.

4, Digital process: 16bits.

5, Recommended minimum viewing distance: 3m.

Description:

TBC SMD LED Displays include outdoor/indoor stage rental/fixed installation led screens: 1.25mm, 1.33mm , 1.45mm , 1.55mm , 1.667mm , 1.875mm , 2mm , 2.5mm , 2.6mm , 2.976mm , 3mm , 3.2mm , 3.75mm , 3.91mm , 4mm , 4.81mm , 5mm , 5.9mm , 6mm , 8mm , 10mm , 12mm , 16mm.

Features and Advantages:

1, Thin, lightweight, easy install.
2, Magnetic module design, front service.
3, High gray scale, clear image.

4, High refresh rate up to 2,000, no strips when taking photos.
5, Air fan free, zero noise.

Parameters:

Parameter Unit Value
Brightness nits 900
Color temperature deg.k 3200 ~ 9300
Viewing angle - Horizontal deg. 140(+70/-70)
Viewing angle - Vertical deg. 140(+70/-70)
Cabinet weight kg 8
Cabinet width mm 480
Cabinet height mm 480
Cabinet depth mm 80
Cabinet area sq. m. 0.23
Cabinet material   Aluminum
Aspect ratio   1:1
Ingress protection (Front/Rear) IP IP40/IP20
Operating temperature range deg. C 0 to 40
Operating humidity range HR 10% to 90%
Pixel type and configuration R/G/B SMD 3in1
Pixel pitch mm 2.5
Pixel matrix per cabinet   192x192
Pixels per cabinet   36864
Lines per meter   400
Pixels per sq. meter   160000
LEDs per sq. meter   160000
Recommended minimum viewing distance m 3
Colours   281trillion
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Digital processing bit 16
Frame rate Hertz 60
Display refresh rate Hertz 1920
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Input power (max/avg) Watts per sq.m 680/230
MTBF Hours ≥10000
Lifetime (50%Brightness) Hours ≥100000
Module brightness uniformity   <5%
Blind spot rate   <0.0001
Earth leakage current mA <2
Red wavelength nm 623
Green wavelength nm 525
Blue wavelength nm 470
Panel input format (with video processor)   VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection   CAT6 cable/Fiber
Operating system   Windows(XP/Vista/7/8/10)
Control distance   Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.

Application:
TBC SMD led screens are widely used in shopping mall, office, hotel, meeting room, theatre, concert hall, public places, building, pole, restaurant, cafe, advertising media and so on.
